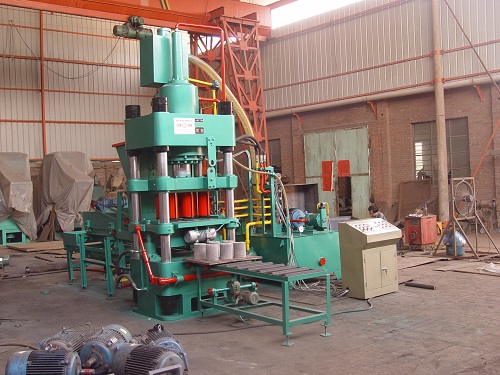

铁粉压筒机 铁粉成型机 铁粉压环机——铁粉压块机
“鑫源液压”牌全自动铁粉压块机压制后的铁粉直接装罐,烧制成海绵铁,与传统手工装罐相比具有产量高,还原速度快,节约能源,延长耐火罐的使用寿命等特点。
本机采用进口PLC全自动控制,科技含量高,大大降低了工人的劳动强度,从而提高了产品的产量和质量。
本机为四柱式压力机,采用优化的液压传动方案,具有强大的动力,准确的定位和完善的动作组合。本机故障率低,发热量小,生产率高,节电耐用。
技术参数(Technique parameter) |
|||||
机型 |
|
XY32-300-4 |
XY32-400-6 |
||
项目(item) |
单位(units) |
数值(number) |
|||
公称压力(Nominal pressure) |
KN |
3000 |
4000 |
||
使用压力(Working pressure) |
Mpa |
10-25 |
10-25 |
||
较大行程(Maximum stroke) |
mm |
400 |
400 |
||
较大开口高度(Maximum opening height) |
mm |
970 |
970 |
||
工作尺寸(Working Dimensions) |
左右(Left and right) |
850 |
|
850 |
|
前后(Front and back) |
mm |
|
900 |
||
成品尺寸 (Final dimension) |
mm |
D160/d70×180-200 |
D160/d70×180-200 |
||
工作速度 (Working speed) |
次/min |
2-3次(12-18块) |
2-3次(12-18块) |
||
装机容量 (Installed capacity) |
Kw |
22 |
30 |
||
外形尺寸 (Outline dimension) |
mm |
|
3600×5700×3800 |
After the machine after the iron powder to suppress the direct canning, firing into the sponge iron, and traditional hand-canning high yield compared to restore the speed, energy conservation, to extend the life of fire-resistant cans and so on.
This machine adopts imported PLC automatic control, high technology, greatly reduced the labor intensity, thereby increasing the product yield and quality.
The machine for the Four-column press, using optimized hydraulic drive program, with a strong driving force, accurate positioning and a perfect combination of actions. The machine failure rate is low, heat a small, high productivity, energy-saving and durable.
